U-25

General Technical Specifications:

• Worktable Size: approx. 600 × 400 mm

• Axis Travel (X/Y/Z): approx. 500 × 400 × 400 mm

• Spindle Speed: up to 12,000 rpm

• ATC Capacity: 16–24 tools

• Spindle Motor Power: 5.5–7.5 kW

• Machine Dimensions: approx. 2,000 × 2,100 × 2,300 mm

• Machine Weight: approx. 3.5 tons

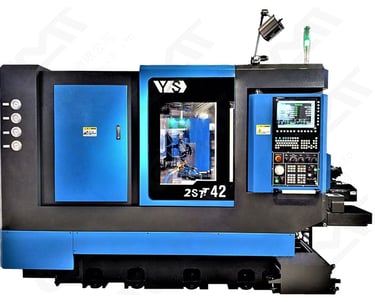

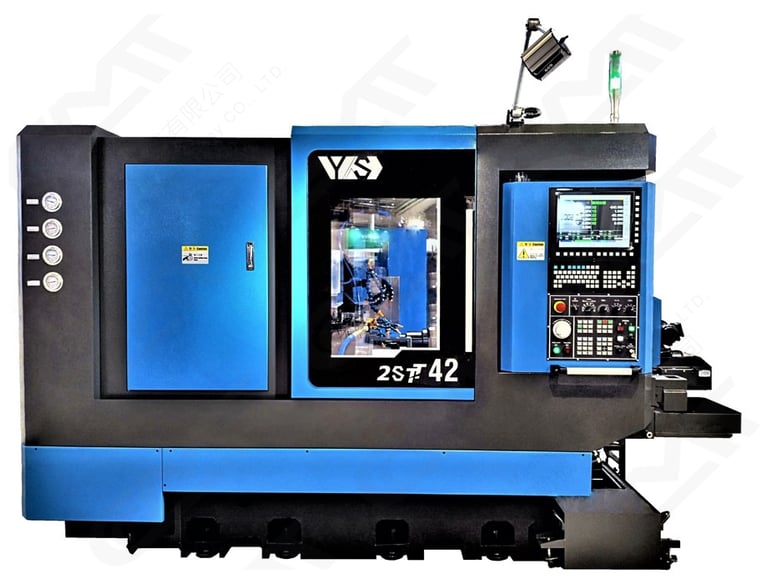

2STT-42

General Technical Specifications:

• Maximum Bar Diameter: Ø42 mm

• Spindle Configuration: Twin Spindle

• Number of Turrets: Twin Turret (8–12 positions per turret)

• Spindle Speed: up to 6,000 rpm

• Spindle Motor Power: approx. 5.5–7.5 kW

• Machine Dimensions: approx. 2,400 × 1,600 × 1,900 mm

• Machine Weight: approx. 4.0 tons

General Technical Specifications:

• Maximum Turning Diameter: Ø36 mm

• Spindle Type: Precision high-speed spindle

• Control System: FANUC / Mitsubishi

  (depending on configuration)

• Tool Turret Capacity: 8–12 stations

• Machine Dimensions: approx. 1,800 ×

  1,300 × 1,700 mm

• Machine Weight: approx. 2.5 tons

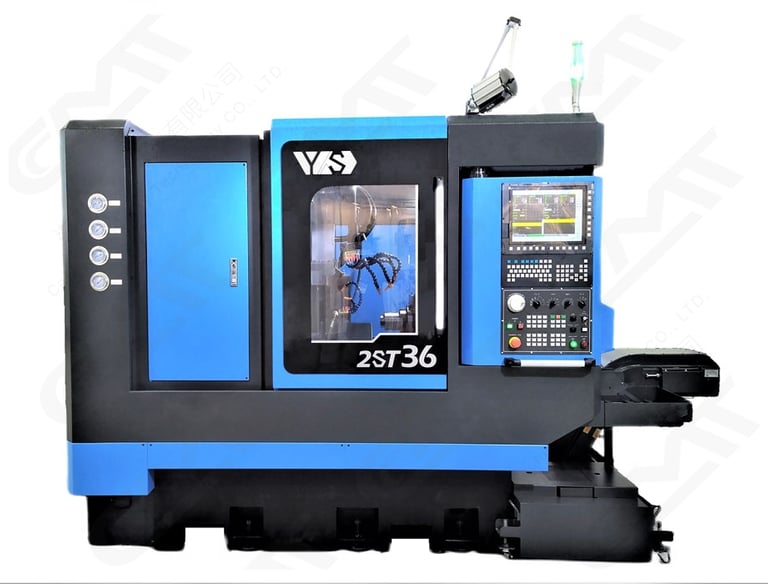

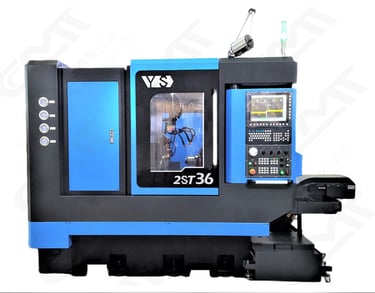

2ST-36

UL-20

General Technical Specifications:

• Swing Over Bed Capacity: approx. Ø400

  mm

• Maximum Processing Length: approx.

  300 mm

• Maximum Bar Diameter: approx. Ø51 mm

• Spindle Speed: up to 4,000–6,000 rpm

• ATC System: 8–12 tool turret

• Machine Dimensions: approx. 2,300 ×

  1,500 × 1,800 mm

• Machine Weight: approx. 3.2 tons

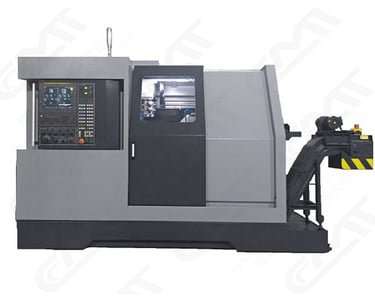

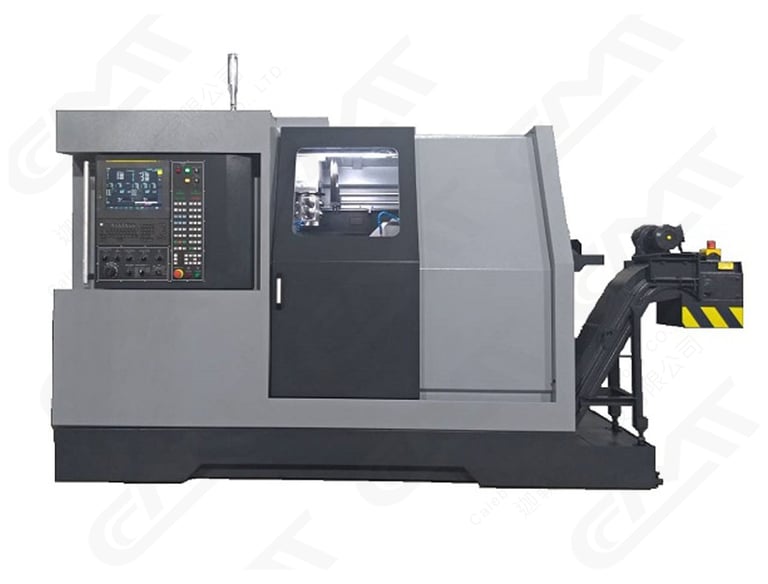

2STB-52

General Technical Specifications:

• Maximum Bar Diameter: Ø52 mm

• Processing Length: approx. 200 mm

• Spindle Speed: up to 6,000 rpm

• Turret System: 8–12 station turret

• Spindle Motor Power: approx. 5.5–7.5 kW

• Machine Dimensions: approx. 2,200 ×

  1,500 × 1,800 mm

• Machine Weight: approx. 3.8 tons

General Technical Specifications:

• Worktable Size: approx. 1,000 × 500 mm

• Axis Travel (X/Y/Z): approx. 850 × 500 × 550 mm

• Spindle Speed: up to 12,000 rpm

• Spindle Type: BT40

• Spindle Motor Power: approx. 7.5–11 kW

• ATC Capacity: 16–24 tools

• Machine Dimensions: approx. 2,600 ×

  2,200 × 2,400 mm

• Machine Weight: approx. 4.2 tons

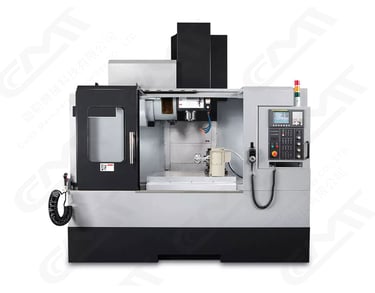

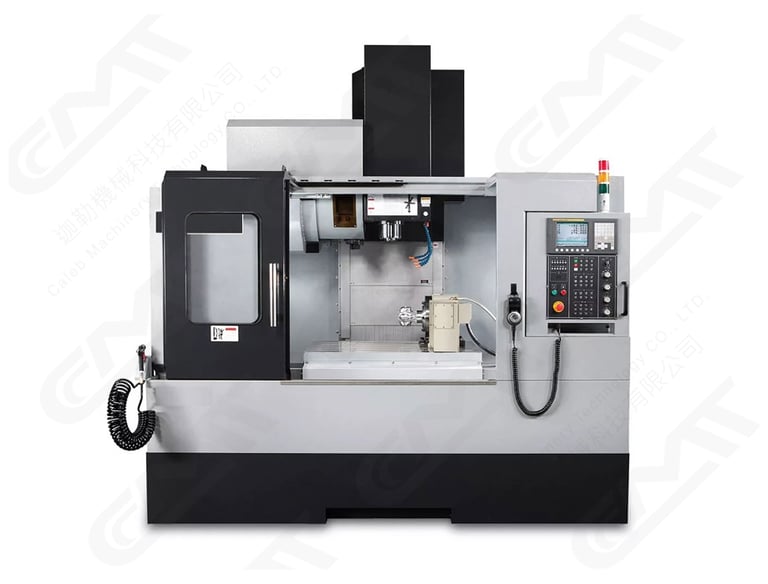

UM-85
